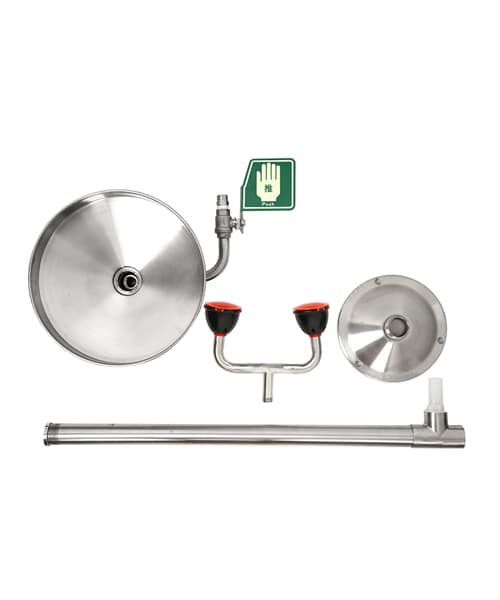

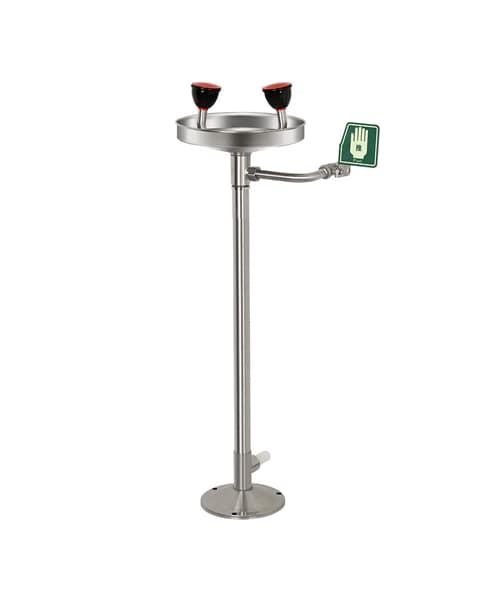

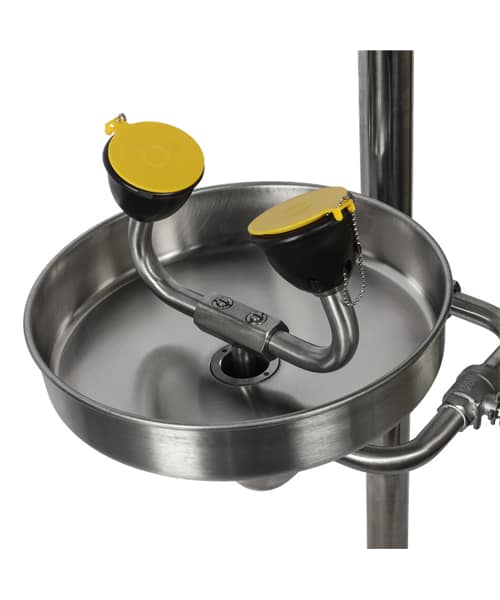

Eye Washer Type: Pedestal Stainless steel Emergency Eye Wash Station
Model: L1201
Material: SUS 304
Outer Workshop: Polished / Brushed
Functions: Eye Wash, Face Wash (Both Together and Individual Use)
Stwich of Ball Valve: Double-piece ball valve
Pipe Diameter: 38mm
Pipe Wall Thickness: 3mm
Test Pressure: 1.6Mpa
Operation Pressure: 0.2 ~ 0.6Mpa
Ambient Temperature: 0℃~ 40℃
Washer Flow Rate: ≥ 11.4 L/min
Eyewash Bowl: SUS304, 300mm
Eye/Face Wash Spray Heads: Filter, Dust-cover, Flow-limit and pressure-control device
Water Inlet/Outlet: DN15/DN25
Standards: GB/T38144.1/2-2019, ANSI.Z358.1/2-2014
Out Size: 100cm*35cm*47cm
Pack Size: 78cm*40cm*22cm(2 sets of each)
N.W.: 8.4kg
G.W.: 9.5kg
