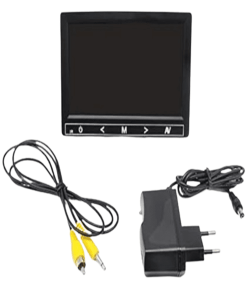

Advanced Handheld Digital Microscope Display

Elevate your microscopy experience with our Handheld Digital Microscope Display Kit, offering 5, 7, or 9-inch screen options to suit your preferences. Designed for compatibility with both stereo and biological microscopes, this kit includes a high-quality WF10X Eyepiece for precision observations.

Key Features:

10X Magnification: Get a closer look at your samples, revealing intricate details.

Crystal Clear Resolution: Select from three screen sizes with resolutions tailored to your needs – 5″: 480 * 680, 7″: 740 * 480, 9″: 800 * 480.

Versatile Mounting: The kit comes with a 23.2 mm mounting diameter, with optional 30 mm or 30.5 mm available for added versatility.

Durable Construction: The moveable stage is constructed from high-quality plastic and metal, ensuring a long service life and making it an excellent replacement for worn-out components.

Educational Enhancement: This kit includes a sophisticated binocular compound microscope, which has proven to be highly conducive to the educational journey of high school and university students.

Digital Microscope Display Specifications:

Product Name: HX110A-HD-D
Panel Type: TFT-IPS
Resolution: 1280 * 800
Aspect Ratio: 16:9
Contrast: 1200:1
Brightness: 500cd/m2
Working Voltage: 12V
Working Current: 1A
OSD Language: Chinese, English, Japanese, etc.
Visual Angle: 120 degrees (full view)
CMOS Image Sensor: 1/3 inch
Total Pixel: 130W
Video Output: 720P video signal output
Working Environment Humidity: Below 85% RH
Control Panel Functions:

Power On/Off
Adjustment Parameters Selection
OSD Menu Access
Crosshair Function
OSD Menu Functionality:
Access and adjust brightness, contrast, saturation, hue, language settings (Chinese/English, etc.), and reset options for a personalized viewing experience.

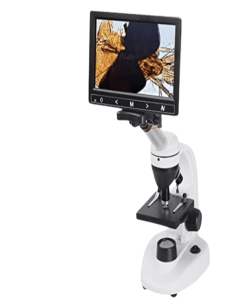

Installation Process:

Remove the eyepiece from the microscope.
Remove the red cap on the display end.
Insert the display into the eyepiece barrel.
Plug in the monitor power cord.
Adjust the microscope after the display is lit.
Please Note:

Warranty coverage applies to non-human faults during the warranty period. Keep relevant documents and this page as a basis for service.
Damage due to improper use, maintenance, or storage is not covered.
Unauthorized disassembly or invoice alteration will void the warranty.
Interpretation rights are reserved by the company.
Enhance your microscopy capabilities and explore the microcosm with confidence using our comprehensive Handheld Digital Microscope Display Kit.
