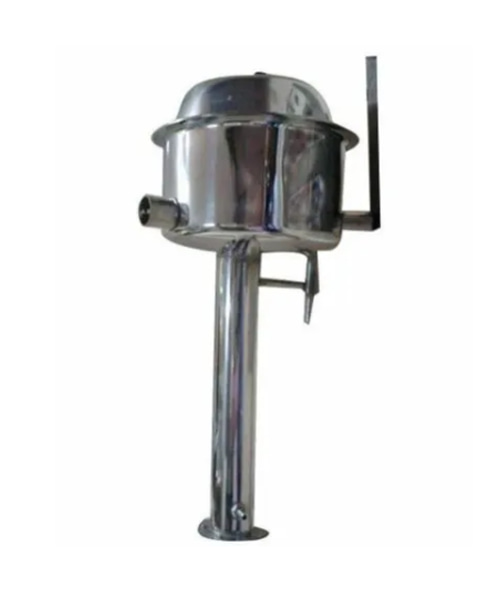

Electric Wall Mounted Water Distillation Unit

Product Description
With an emphasis on the ever-evolving demands of our customers, we have come up with a broad range of uniquely designed Manesty Type Water Still. Under the able guidance of our talented workforce, this product is manufactured using higher grade raw material and cutting-edge methodology in tandem with set industry standards. In order to ensure its quality, this product is duly checked on diverse parameters of quality by our quality controllers.

Features:

Sturdiness
Easy installation
Anti-corrosive

APPLICATIONS OF WATER STILL WALL TYPE
Water Still Wall Type apparatus provides continuous supply of pyrogen free distilled water.
The unit is recommended for making pyrogen free distilled water for routine laboratory requirements.
SALIENT FEATURES & CONSTRUCTION OF WATER STILL WALL TYPE
Made out of Stainless Steel (SS-304 grade).
The cock fitted to the unit is brass C.P .
The portable condenser system is provided for easy cleanliness for inside portion for better efficiency & avoid choking.
The water still is fitted with special kettle element (ISI Marked)with automatic ejection device which works in the case of failure of water supply .
This apparatus is also being equipped with brackets for wall mounting plug.
Supplied with cord and plug to work on 220/230 volts A.C. supply .

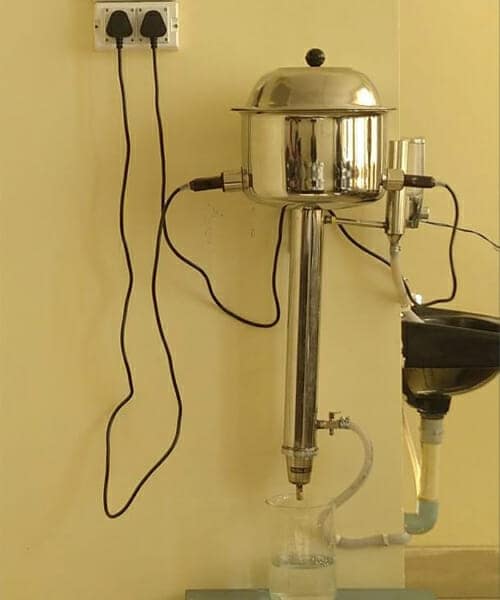

Operation: In these type of water stills designed for wall mounting— Water feeds from the base through tap of the condenser jacket. & Water circulates automatically around the condenser tube and after that fills the boiling chamber up to a certain level.
Water level inside boiling tank is controlled by the overflow level fitted on right side of tank after attaining the required level of raw water to be distilled switch on the heaters. For efficient operation, a quantity of cooling water is required equal to approximately eight time s of the distillate output. The distillate will come from the lower portion (funnel type) of the condenser .
Output: 5 L/h
