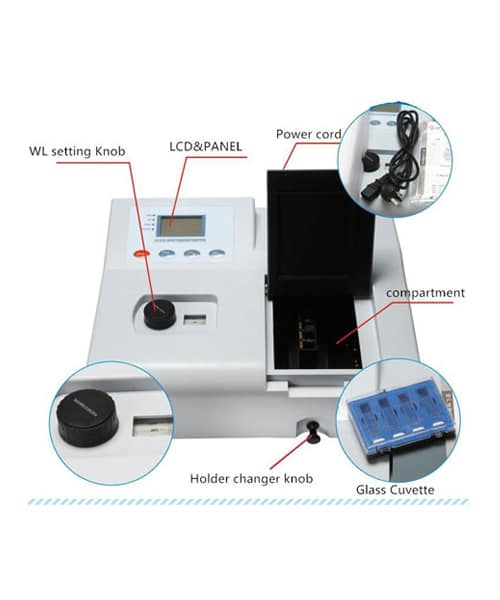

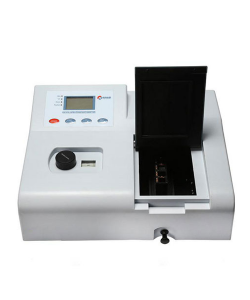

Spectrophotometer Model V1100

1. A simple single beam spectrophotometer.

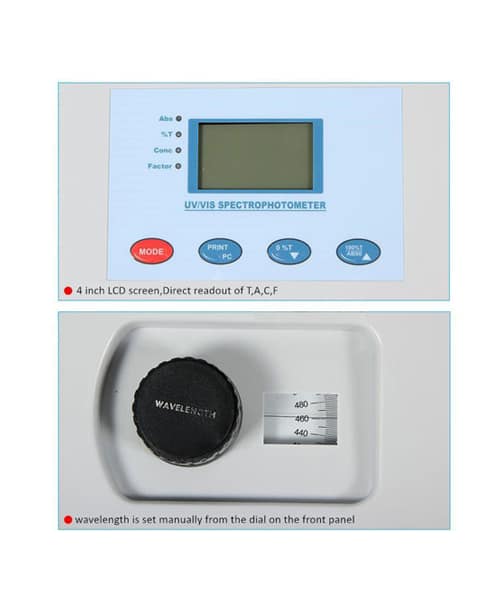

2. The wavelength is set manually.
3. Direct readout of transmission or absorption on the LED display.
4. Measured values can be transferred to PC via RS232 port for further analysis.
5. Low price and simple design make the model ideal tool for education or routine analysis.

Optical System: Single Beam, Grating 1200 lines/mm
Wavelength Range: 330-1020 nm
Spectral Bandwidth: 5 nm
Wavelength Accuracy: ±2nm
Wavelength Repeatability: 1nm
Photometric Accuracy: ±0.5%T
Photometric Repeatability: 0.2%T
Photometric Range: 0-200%T,-0.3-3A
Stray light: 0.3%T
Stability: 0.002A
Baseline Flatness: ±0.002A
Noise: ±0.001 A
Wavelength Setting: AUTO
Light Source: Tungsten lamp
Display: 4 LCD
Detector: Silicon Photodiode
Output: RS-232
Power: AC 220V/50Hz or AC 110V/60Hz
Dimension: 520*450*320mm
Weight: 10kg
